Measures accelerations on vessel and crew with real time display of shock and vibrations.
Feedback for driver to alter course or slow down to reduce WBV exposure to crew and passengers.
Visual warning if threshold exceeded, requires PIN code to reset.
Monitor crew wellbeing and review daily operations in the VIMMS Console.
Measures accelerations on vessel and crew with real time display of shock and vibrations.
Feedback for driver to alter course or slow down to reduce WBV exposure to crew and passengers.
Visual warning if threshold exceeded, requires supervisor PIN code to reset.
Monitor crew wellbeing and review daily operations in the VIMMS Console.
About VIMMS
The Vessel Impact and Motion Monitoring System (VIMMS) is designed as a direct response to the maritime industry’s requirement to monitor crew and vessel levels of shock and vibration on both crew and vessels during operations in waves and at high speeds.
VIMMS includes a helm unit and two remote sensors for measuring accelerations on the vessel structure and at the drivers seat, with extra sensors added for measuring other positions if required.
The twin LED display provides real time data for the driver to understand the impact of their driving, and to slow down or alter course to reduce the effects of repeated shocks and whole body vibration on crew and passengers.
If the maximum limit is exceeded, the top LED stays lit and requires a supervisor PIN number to reset the display.
Data is uploaded to the VIMMS Management Console, providing a complete overview of operations and ongoing exposure of the crew and vessel to vibration and repeated shocks.

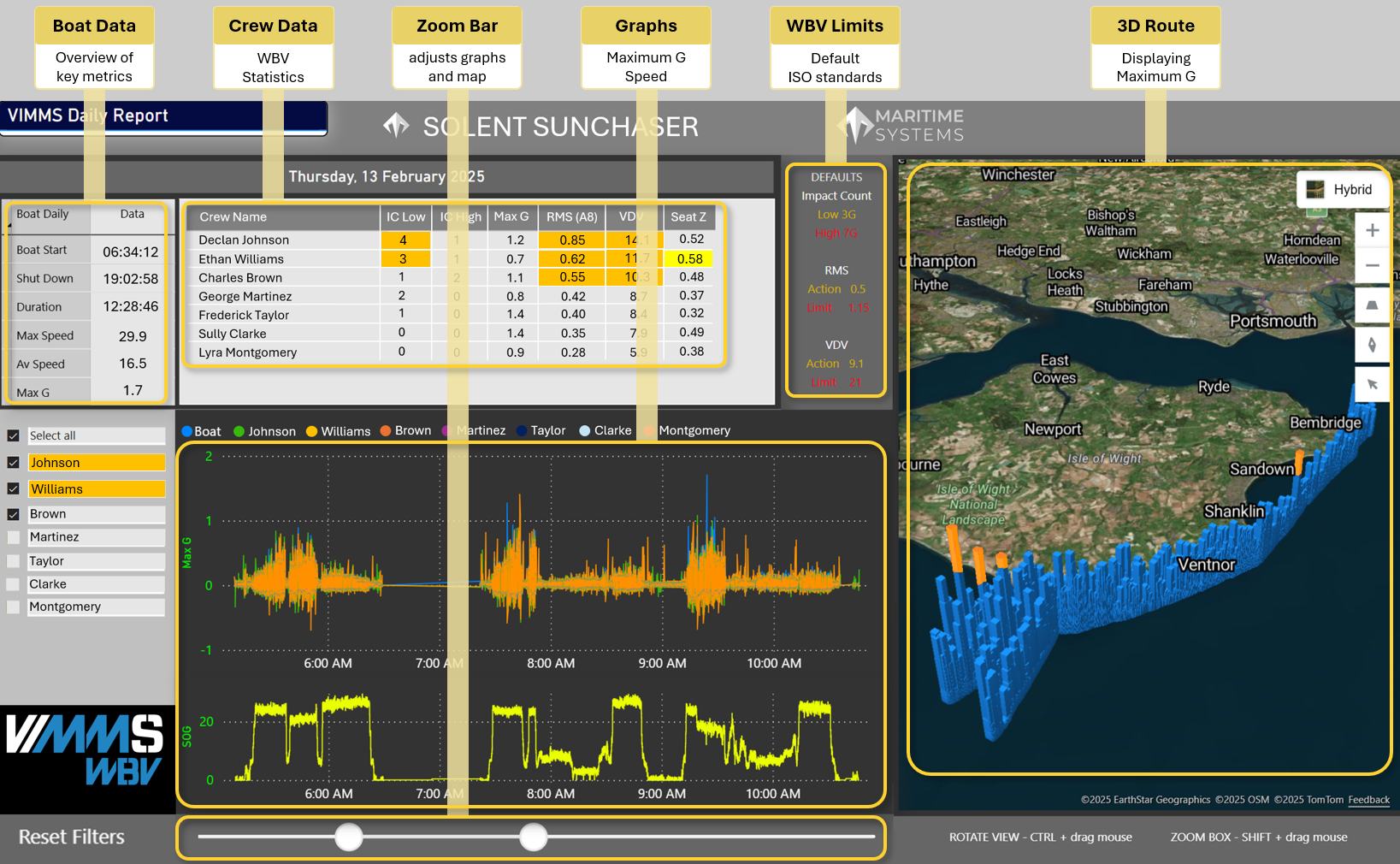

VIMMS Pro Portal
Data is accessed through the VIMMS Console providing detailed information on daily operations, and a long term overview of the entire fleet. Key metrics make it simple to maintain operational oversight, maximising productivity and increasing wellbeing of staff.
With managers making data driven decisions and forecasting potential issues, VIMMS increases safety and provides an organisation with a cost effective tool to increase their duty of care and meet regulatory targets.
Incorporating Microsoft AI technologies, the VIMMS Console provides insight on the differences in performance across the fleet and promotes collaborative learning to reduce risk and increase efficiency.
Try Demo Below

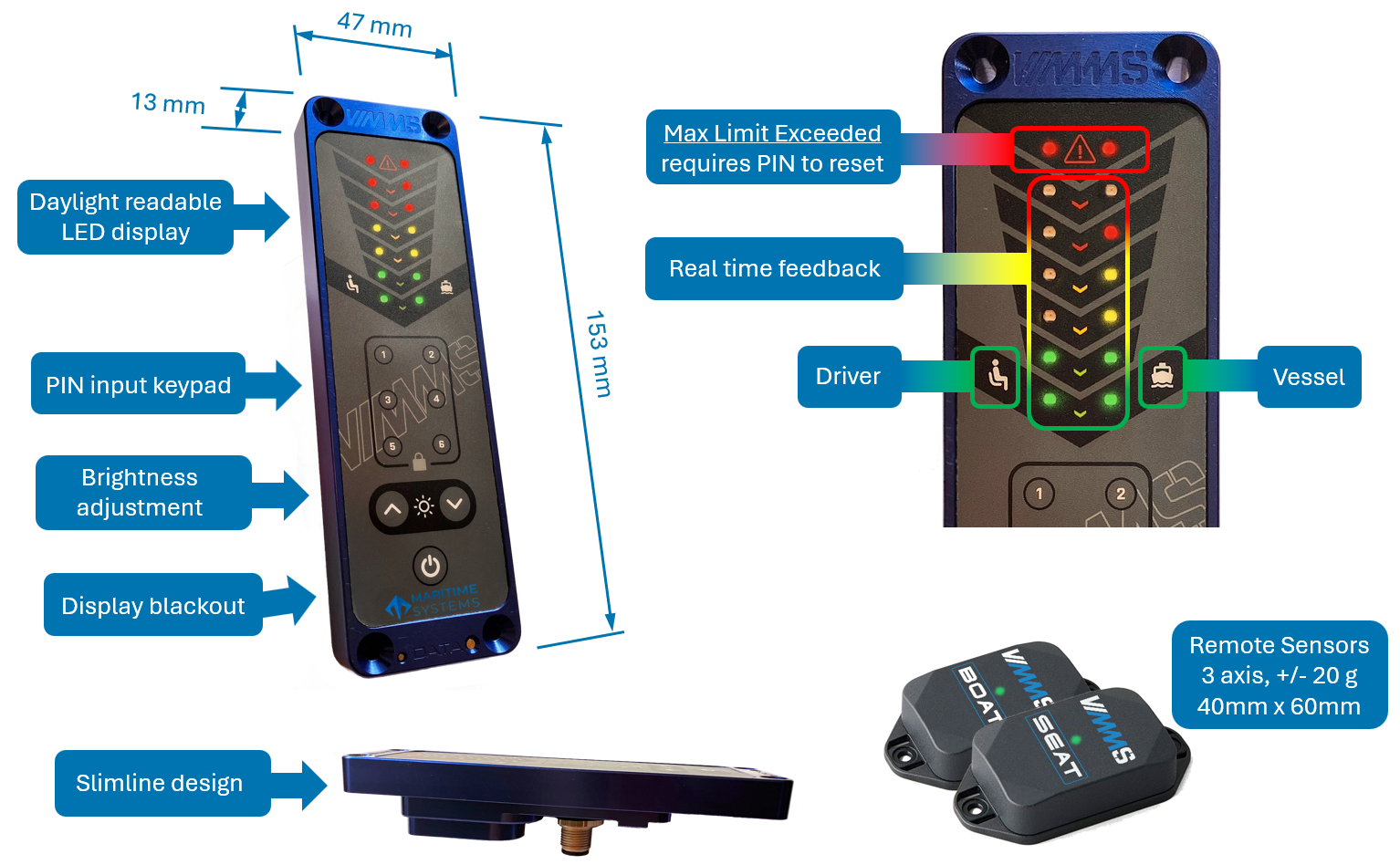

Hardware
VIMMS rugged construction has been proven on military vessels operating in the extreme conditions. Simple to fit and setup, the compact dashboard unit contains the processing unit, solid state storage and internal GPS antenna. Self calibrating sensors are mounted to the vessel structure and the drivers seat, connecting to the dashboard unit with supplied cables.
Compact, IP67 rugged housing
3 axis, +/- 20g acceleration sensors
Internal GPS Antenna
128 GB SSD memory
Backup battery power
USB-C data port with locking IP67 cover
Compact, IP67 rugged housing
3 axis, +/- 20g acceleration sensors
Internal GPS Antenna
128 GB SSD memory
Backup battery power
USB-C data port with locking IP67 cover
Case Studies
Safari Trip INjury
Following an accident by passenger with an undisclosed health issue, Torquay Watersports used data from VIMMS to prove to the authorities that the injury was not caused by the skippers actions.
©Torquay Watersports
US Coastguard
VIMMS is fitted as standard on the next generation of the US Coast Guard’s Over The Horizon (OTH V) cutter boats. With 200 boats in production, these are the Coast Guard’s first boats with a shock monitoring system.
©Inventech Marine Solutions
Developed in conjunction with leading shock mitigating seat manufacturer, SHOCKWAVE Seats, to the requirements of the military and US Coast Guard.
